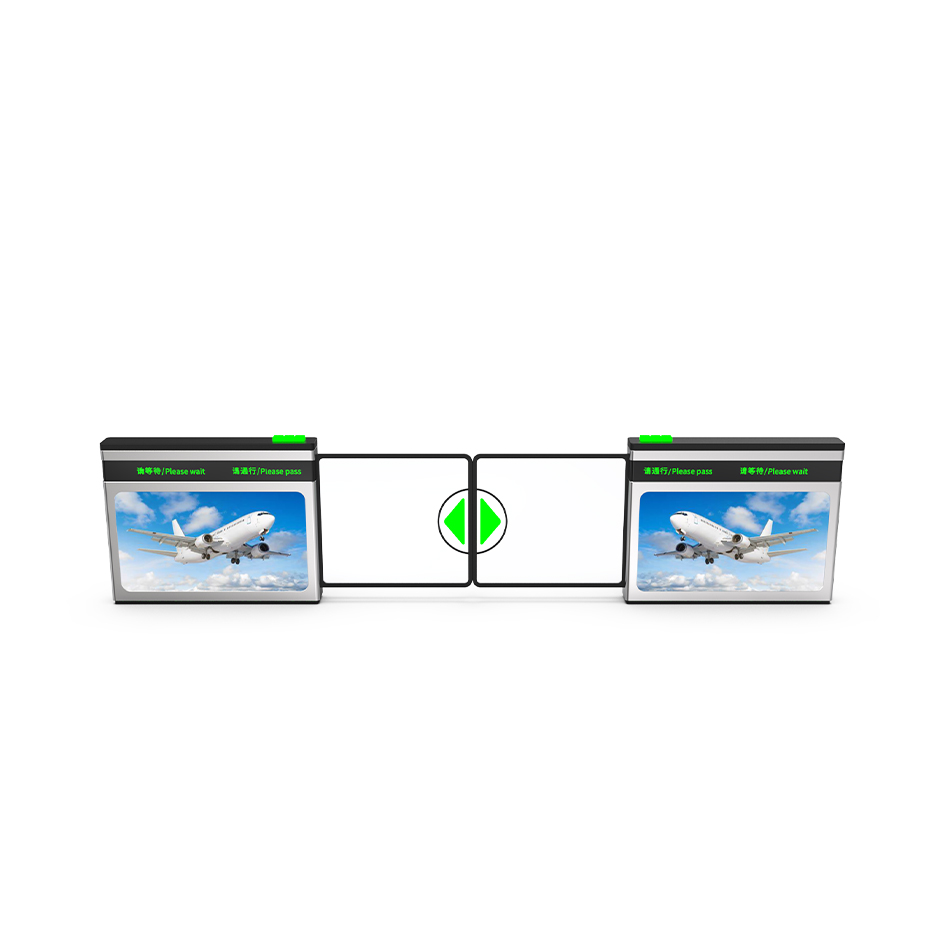

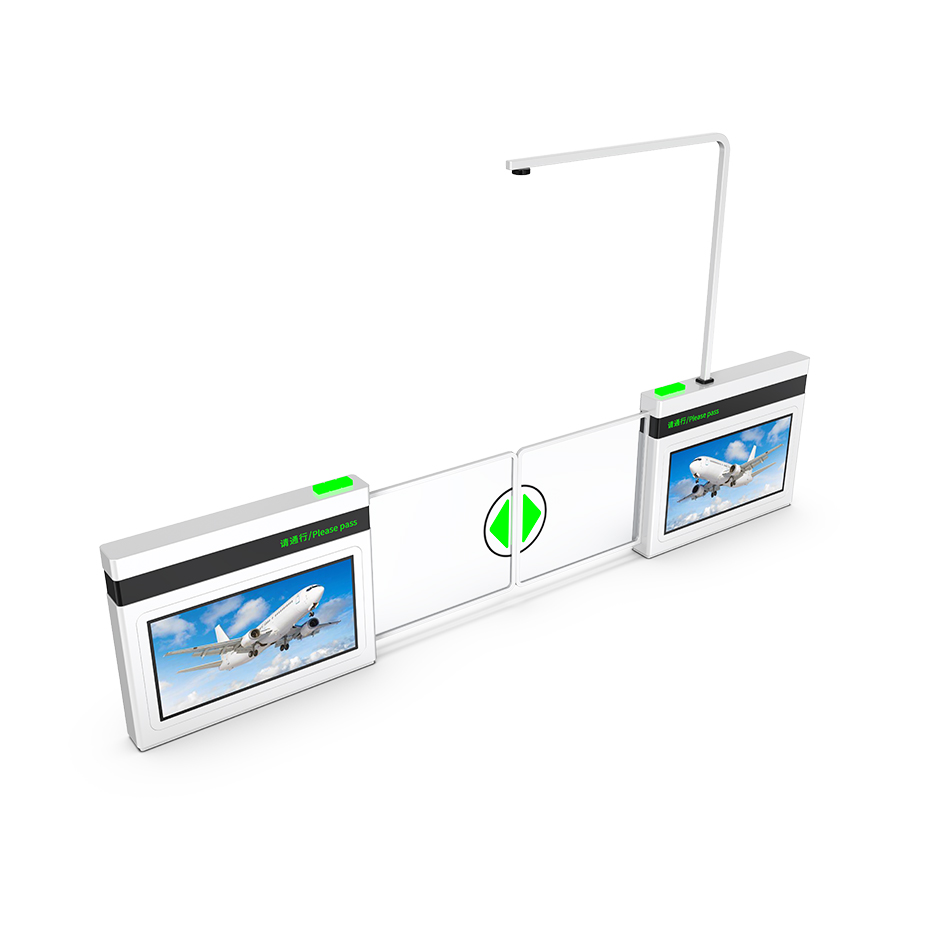

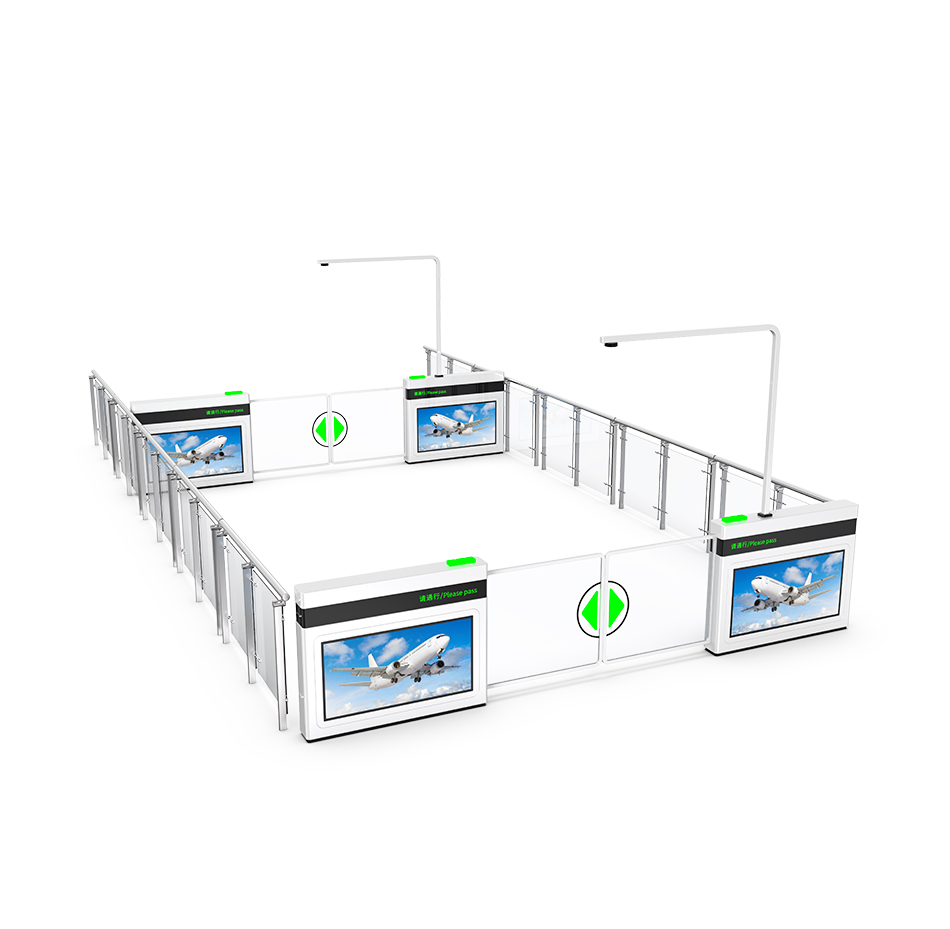

Explosion-proof Inspection Auxiliary Release System

Auxiliary Release System

The Explosion-proof Inspection Auxiliary Release System replaces the original personnel interception and release barrier tape by setting up a set of automatic release channels at the entrance of the terminal building. Explosion-proof inspectors manually enable remote door opening and release for passengers who have passed the explosion-proof inspection, which improves the automation of explosion-proof release and passage efficiency, reduces work intensity, and cuts labor costs.

The equipment adopts a high-flow unit to handle high-traffic scenarios at the terminal entrance. It can also serve as an advertising carrier, realizing multiple functions with one device. The device body has obvious red and green light indication marks, which can effectively guide personnel to pass through.

According to different usage scenarios and user groups, different front-end identification devices and control methods can be selected to adapt to different software.

Product Features

 Equipment Material: The outer frame of the machine body is made of stainless steel or carbon steel with spray coating, and the inner frame is made of high-quality structural steel with a thickness of 3mm; the telescopic door is made of double-layer tempered glass with a single-layer thickness of 5mm, and the exterior is edged with stainless steel.

 Door Drive: Adopts a highly reliable DC brushless motor.

 Passage Indication: The entrance and exit of the equipment are equipped with obvious LED displays to show the current status of the channel; when the channel door is opened or closed, the LED indication at the entrance and exit will switch.

 Advertising Playback: LCD all-in-one machines or light boxes can be installed on the front and back of the cabinet for advertising playback, supporting remote sending via mobile APP or local deployment.

 Passenger Flow Statistics: A top-mounted binocular passenger flow statistics module integrates image collection, passenger flow statistics and analysis, and data transmission, which can count the number of passing passengers in real time and display it on the LED screen.
