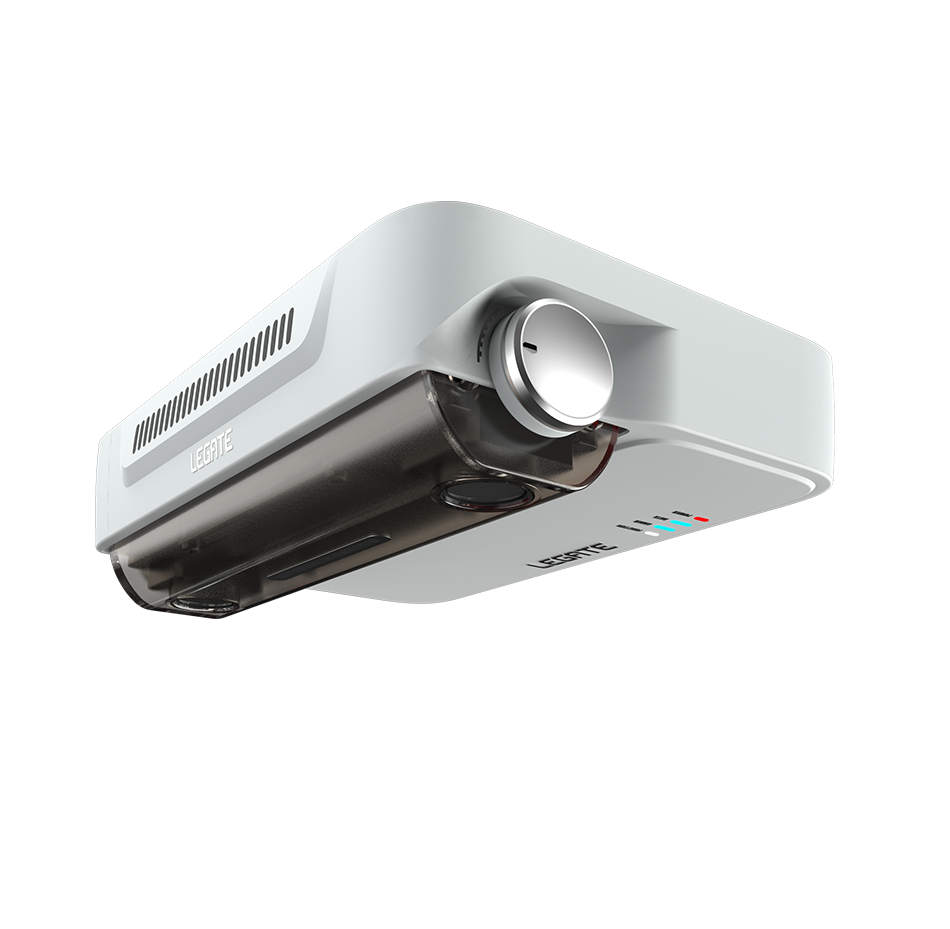

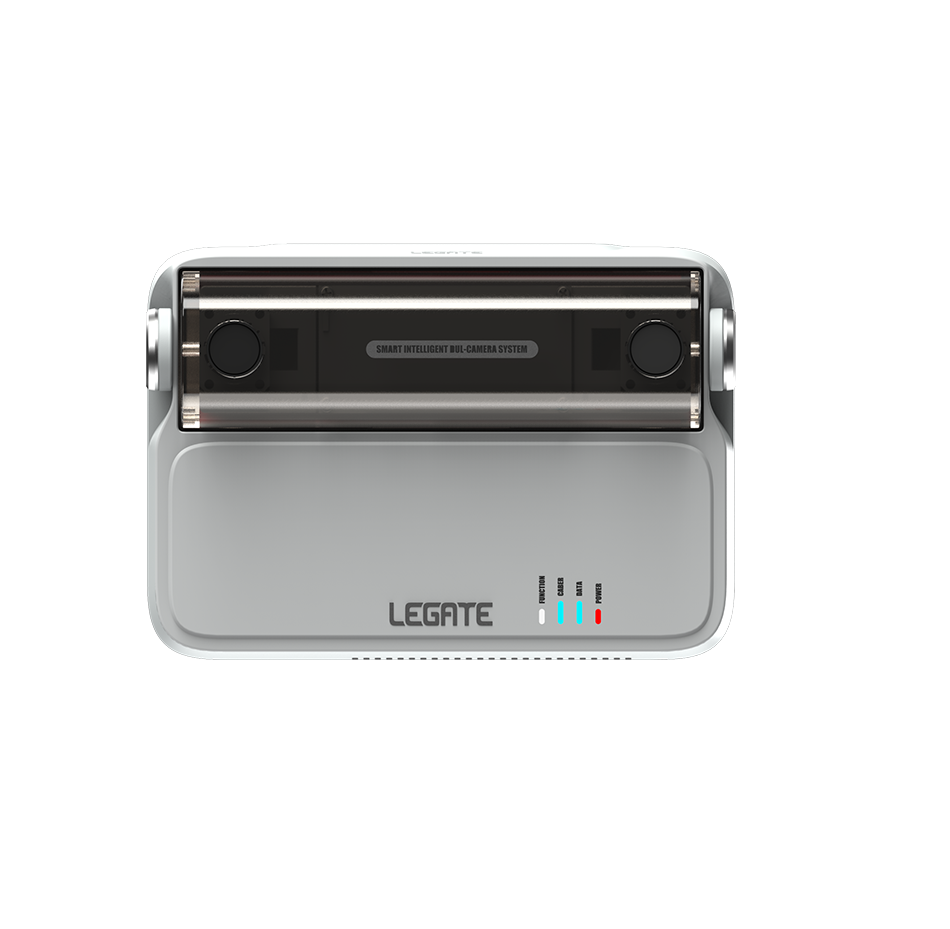

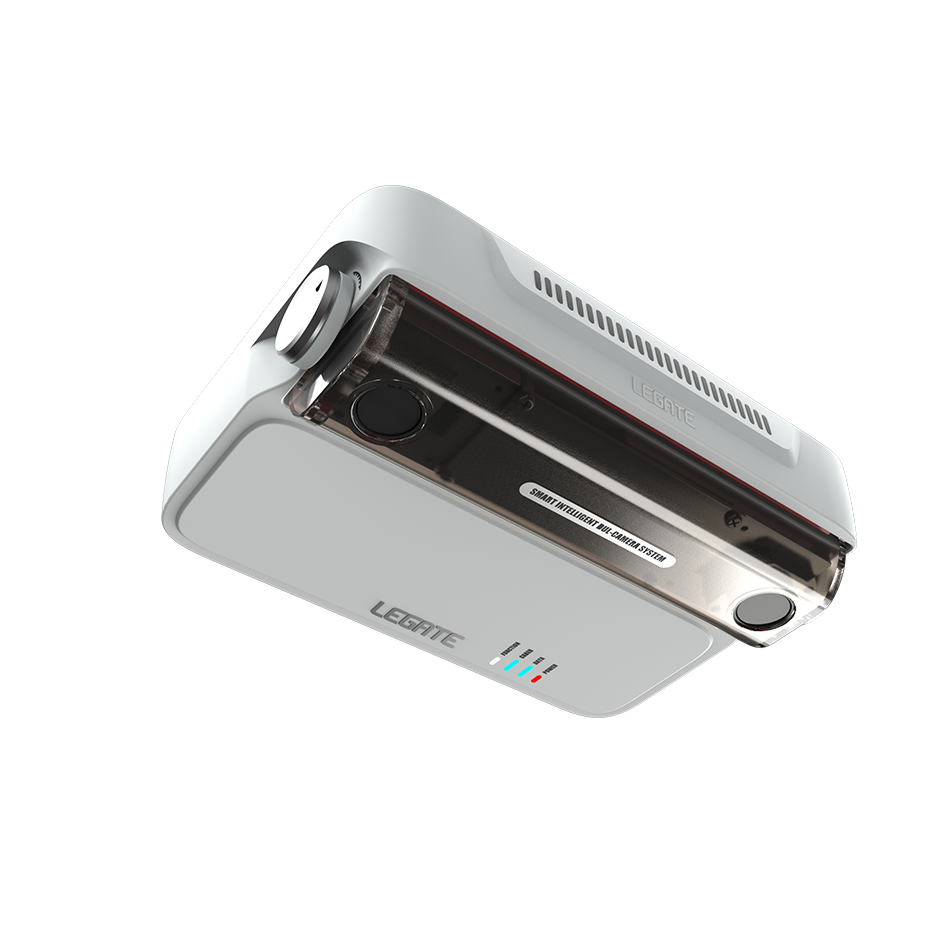

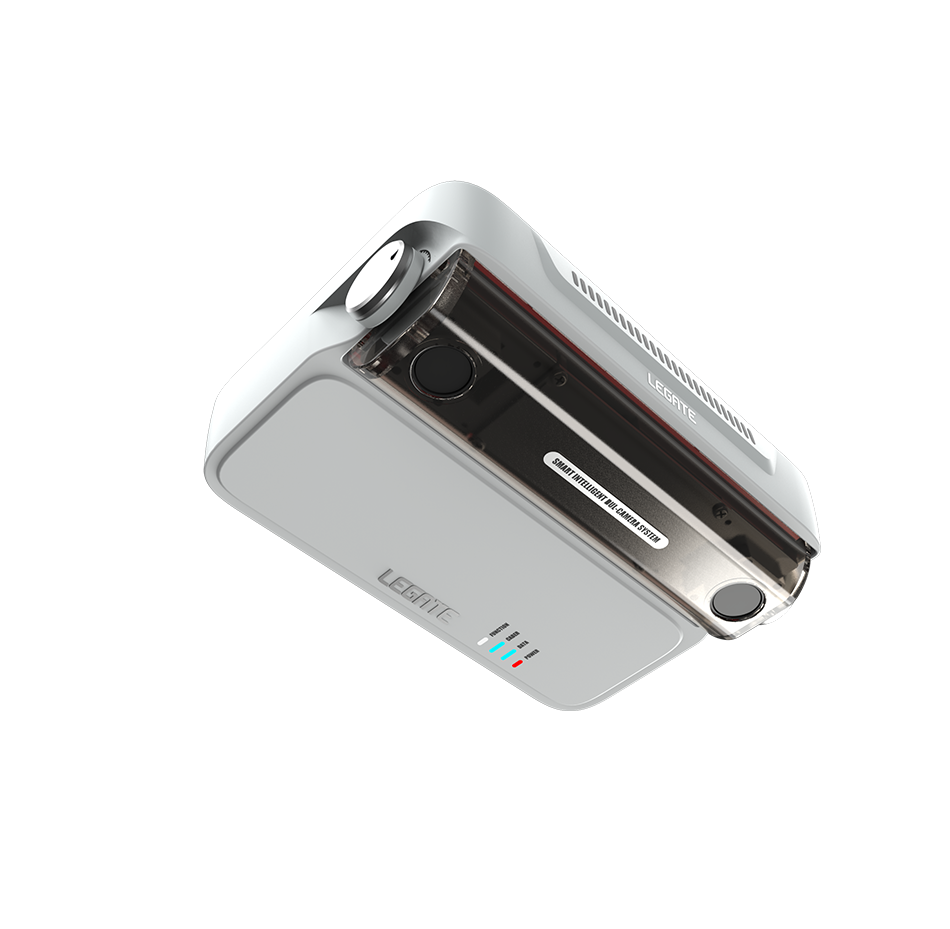

Stereo Vision Module VSM-01-S

Features

The binocular vision communication logic technology realized by the binocular module can realize:

• luggage-friendly passage

After the adult passenger swips the card, the trolley box can pass through smoothly both the front and back .

• Anti-fraud capabilities

1、The two passed side by side. One passenger swiped his card and tried to pass through with the other passenger, cannot pass normally and alarm.

2、Breaking in in the same direction. After a passenger swiped his card, another passenger tried to pass through the gate, but was unable to pass and alarm.

3、The trailing distance is less than 10CM. After a passenger swipes his card, another passenger tries to trail to pass at a distance less than 10CM. The gate will give an alarm and can choose whether to let him pass.

• Child-friendly passage

Taking two children or less, after adult passengers swipe the card, the passengers and children can pass through regardless of order

• The length of the gate can be shortened to 50cm

Core Technology

Technical overview

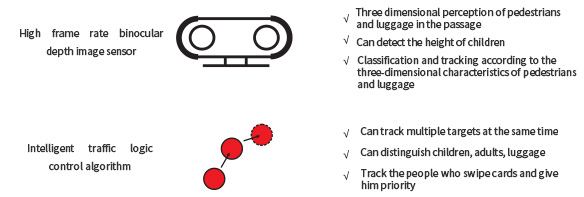

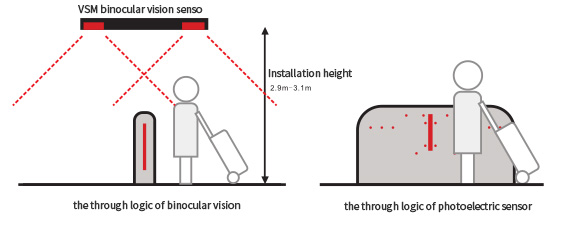

Based on computer vision technology, through the overhead binocular vision sensor and the visual traffic logic controller to achieve the detection and recognition of traffic targets

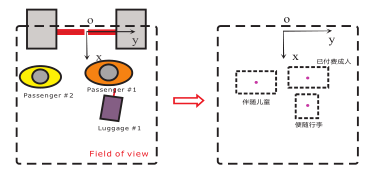

• Multi-target complex motion pattern tracking, greatly improving anti-fraud capabilities and traffic flow under conditions of high passenger flow density

• Target type, parameter recognition. Identify passers-by, luggage and accompanying children, reduce the risk of pinching and slap; accurately measure the height of passers-by

• The projection area of the whole machine is significantly reduced. The length of the gate can be shortened to 50cm, which reduces the area occupied and the appearance design is more modern

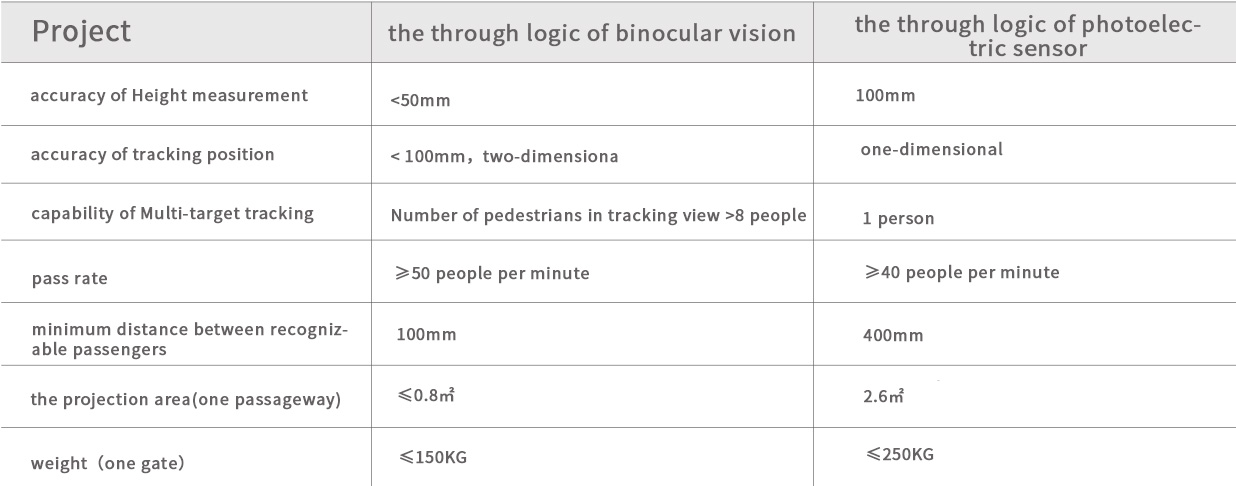

Through logic comparison
